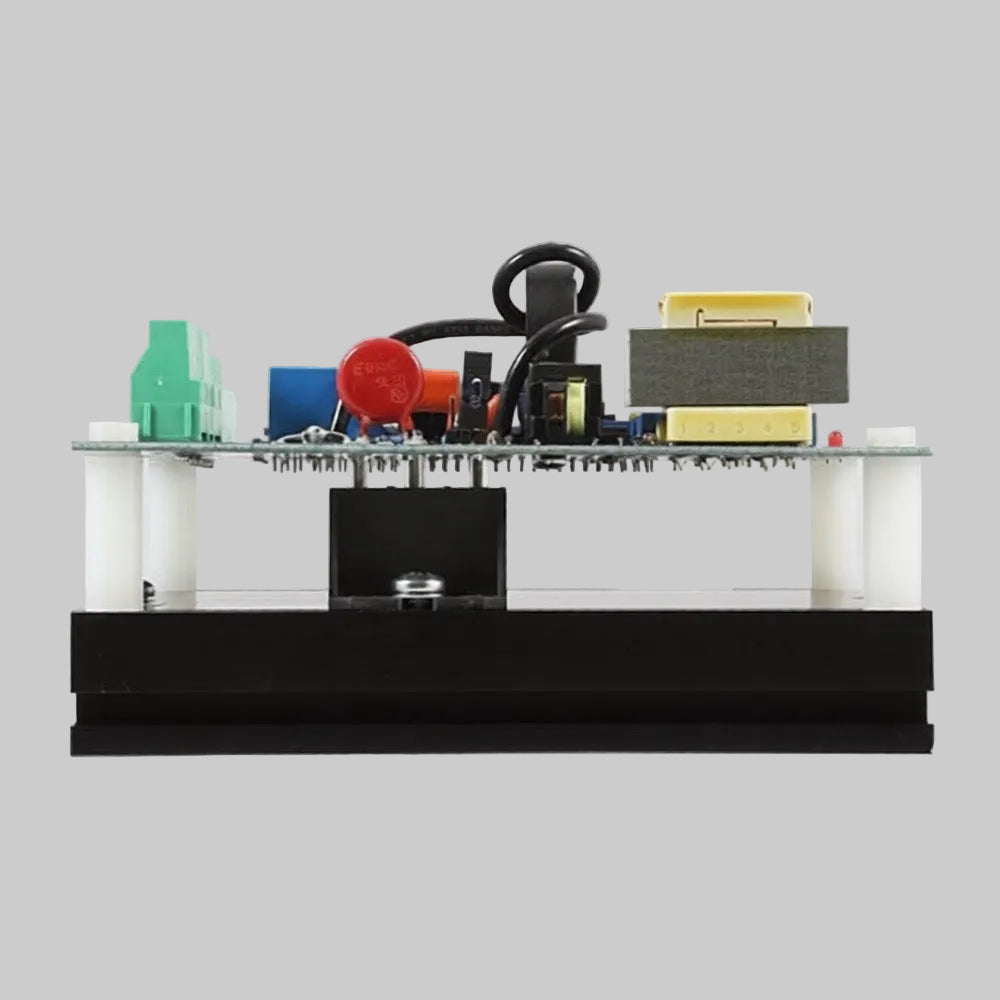

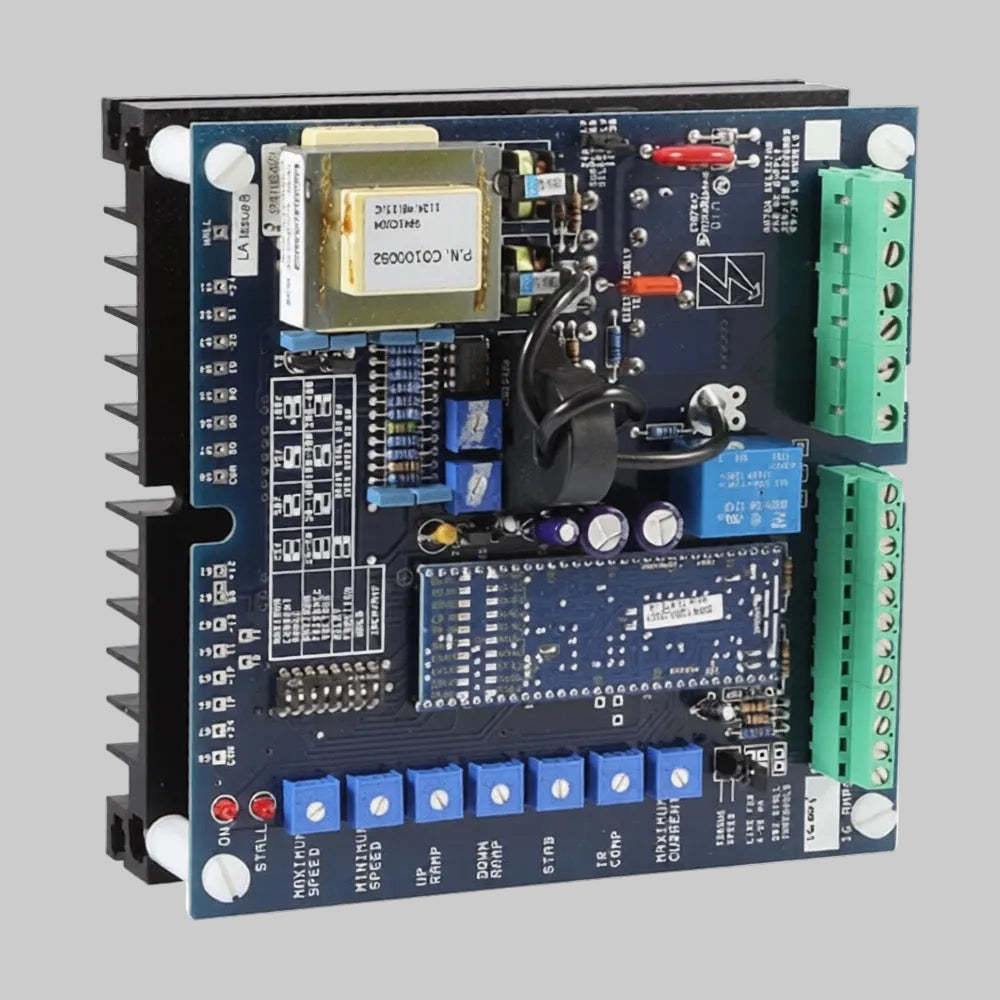

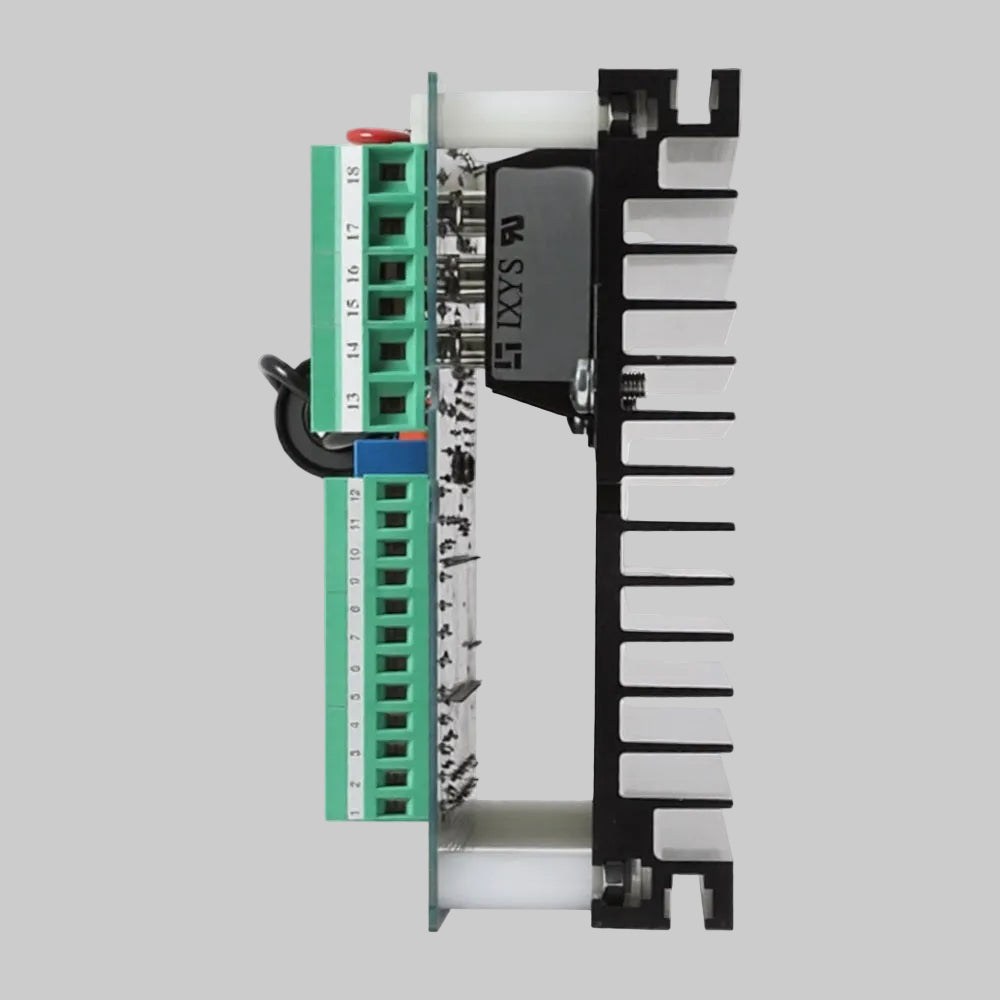

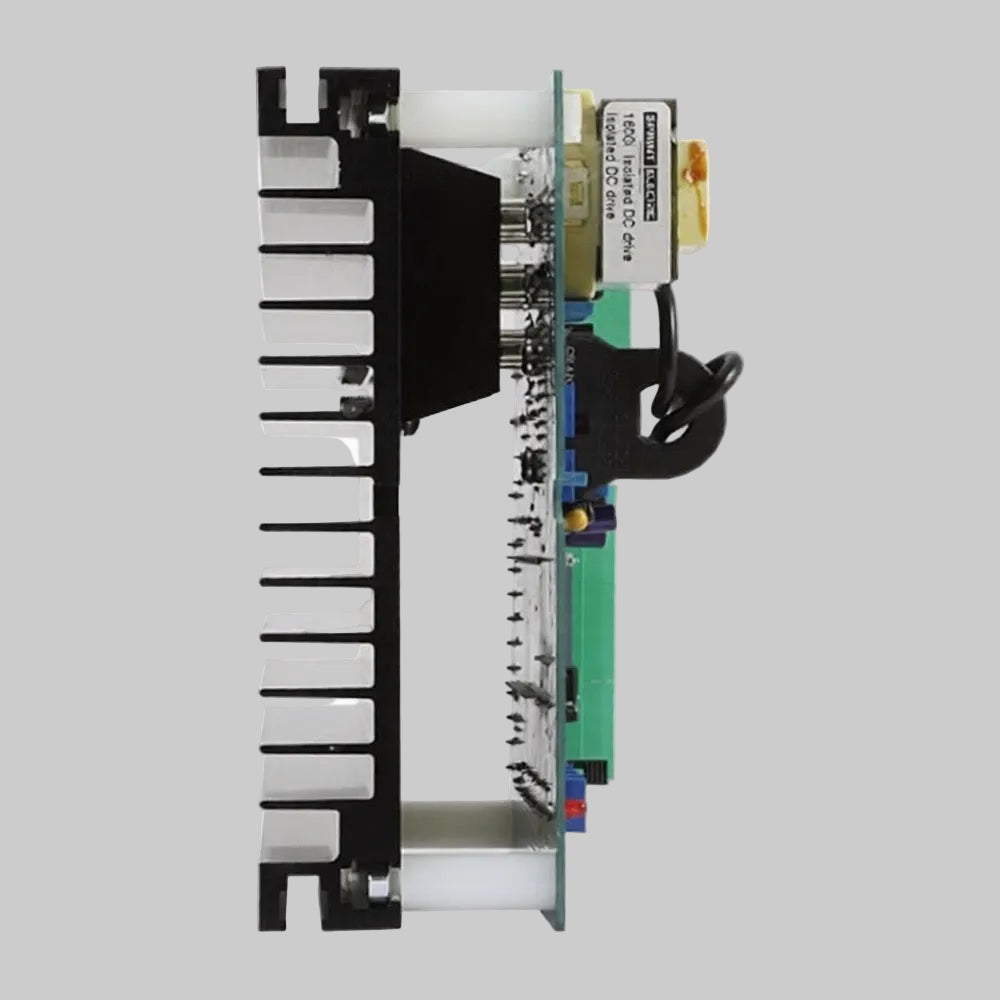

Sprint Electric 1600i - 16A Single Quadrant Isolated DC Thyristor Drive for motor speed and torque control.
240V AC supply - 2.2kW (3HP) at 180V DC.
110V AC supply - 1.1kW (1.5Hp) at 90VDC.
(Low voltage variants are available see links below)
Size: 150mm Wide x 90mm Deep x 150mm High. IP00
Weight: 1.0Kg
Adjustments:-
Max & Min Speed
Ramp Time
Maximum Current
Stability
Adjustable IR compensation for improved AVF speed regulation
Switch selectable Tacho or Armature voltage feedback
Selectable dual voltage ac supply
Aux speed or torque input (selectable)
Zero speed or Stall volt free changeover contact
Run inhibit Note Field and power terminals remain live . (RUN must not be relied on during hazardous operations)
Input Current: 16A to 24A (depending on motor inductance).
Input Voltage: 110V or 240V single phase +-10% at 50/60Hz.
Field Rating: 1A @ 90% input voltage (For half wave field volts 45% input voltage, connect field to F- and N)
Armature Form Factor: Typical form factor 1.5 (load dependant).
Stall protection @ 150% included
Wall mount in clean environment or cubicle mount.
Rated at -10° to 40°C Ambient.
Heat Loss at Max output: 50W.
Mounting via 2 x M5 by 35mm @ 140mm.
Manufacturer part number is 1600i.
Download the Sprint 1600-3200i manual below:-
