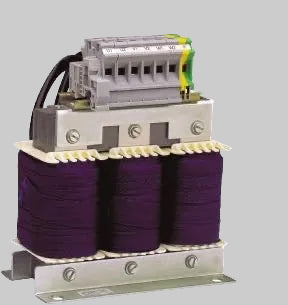

Output Choke Three Phase Output Choke for use with 55kW Inverter Drives to 115A having a long motor cable run. Cable run is the accumulated actual cable length, connected to the Inverter output terminals feeding single or multiple motors. Its use will reduce motor noise and help reduce Voltage reasonance at the motor.
Cable Length: Up to 150m.
Rating: 115A maximum continuous.
Inductance: 0.17mH.
Overload: 150% for 60 seconds every hour.
Voltage: 500V Three phase maximum.
Inverter Switching Frequency: Between 3kHz and 8kHz.
Enclosure Rating: IP00.
Dimensions: 240mm wide x 256mm high x 185mm deep.
Connections: Rings at M12 Size for up to 95mm2 cable.
Also known as a dv/dt filter.
Part Number: CNW854/115
Download the dimension drawing from the link below:
