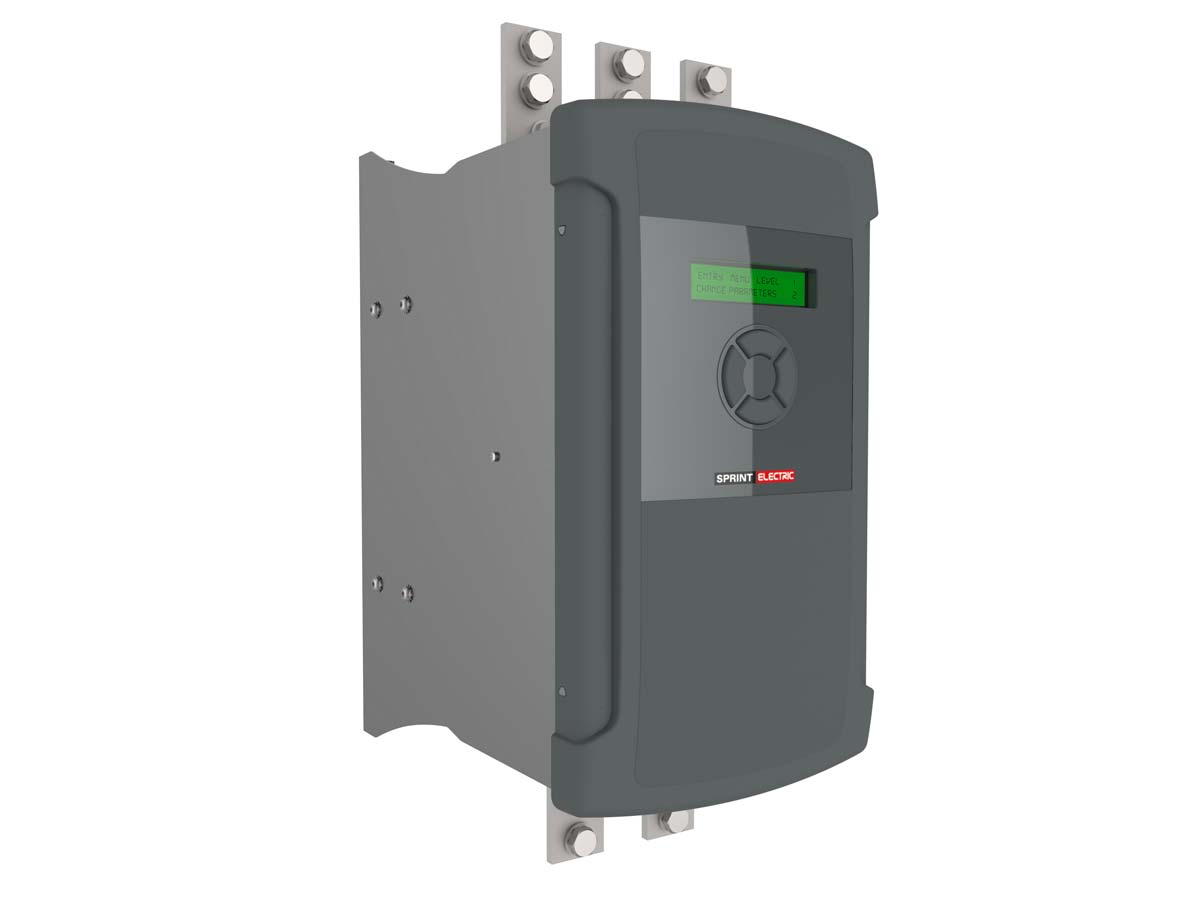

Sprint PLX225 225kW 530A 4Q 12V to 480V 3ph AC to DC Drive

Sprint Electric PLX Series (Frame 3) - 530A 4 Quadrant Regenerative DC Thyristor Drive for 12-480V Supply with 110V or 230V Control supply (universal).
Typical Motor output - up to 225kW (300HP) at 460V DC for motor speed and torque control.

Power Cable Entry: Mains Input = Top, Armature Output = Bottom, 3 Phase Auxiliary = Top for this model

4 Navigation keys
Simple to set-up in Digital, fully-isolated 4 Quadrant form and ready to run from its 'Quick Set-Up' settings.
Frame Size 3 - 216mm Wide x 314mm Deep x 505mm High.

Terminals include:-
8 x Analogue Inputs (Selectable Voltage Range +/-/5/10/20/30V).
4 x Analogue Outputs (3 x Programmable).
4 x Digital Inputs – 2 Selectable as Encoder Quadrature Inputs.
4 x Digital Inputs/Outputs – Programmable as outputs
3 x Digital Outputs.
+ & - 10V @10mA Voltage Reference for potentiometers.
Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 wire quadrature) included as standard.
Serial comms RS232 port Fitted, ANSI-X3.28-2.5-B I multi-drop. Available Fieldbus options. Profibus, Devicenet. Ethernet using Driveweb technology, Please add

Input Current - 435A for Armature + up to 32A to 50A for Field.
Input Voltage – 12V to 480V three phase +-10% at 50/60Hz.
Input fuse – 630A - to suit input bridge at 240000A²s
Note. The 3 phase Field and Armature supplies are input through separate terminals and may be at different levels if desired.
Use a choke in the supply at 15uH @ 424A

Ventilation: Force Vented, rear entry
Fan Supply source: External supply required rated @ 50VA 110V 50/60Hz

Ventilation space above - 100mm.
Ventilation space below - 100mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 1300W.
Panel mount with M6 screw fixings on 174mm x 386mm centers

Full part number is PLX225

Download the Technical product Manual from the link below...
