Regular price
$1,413.00 AUD
Regular price
Sale price
$1,413.00 AUD

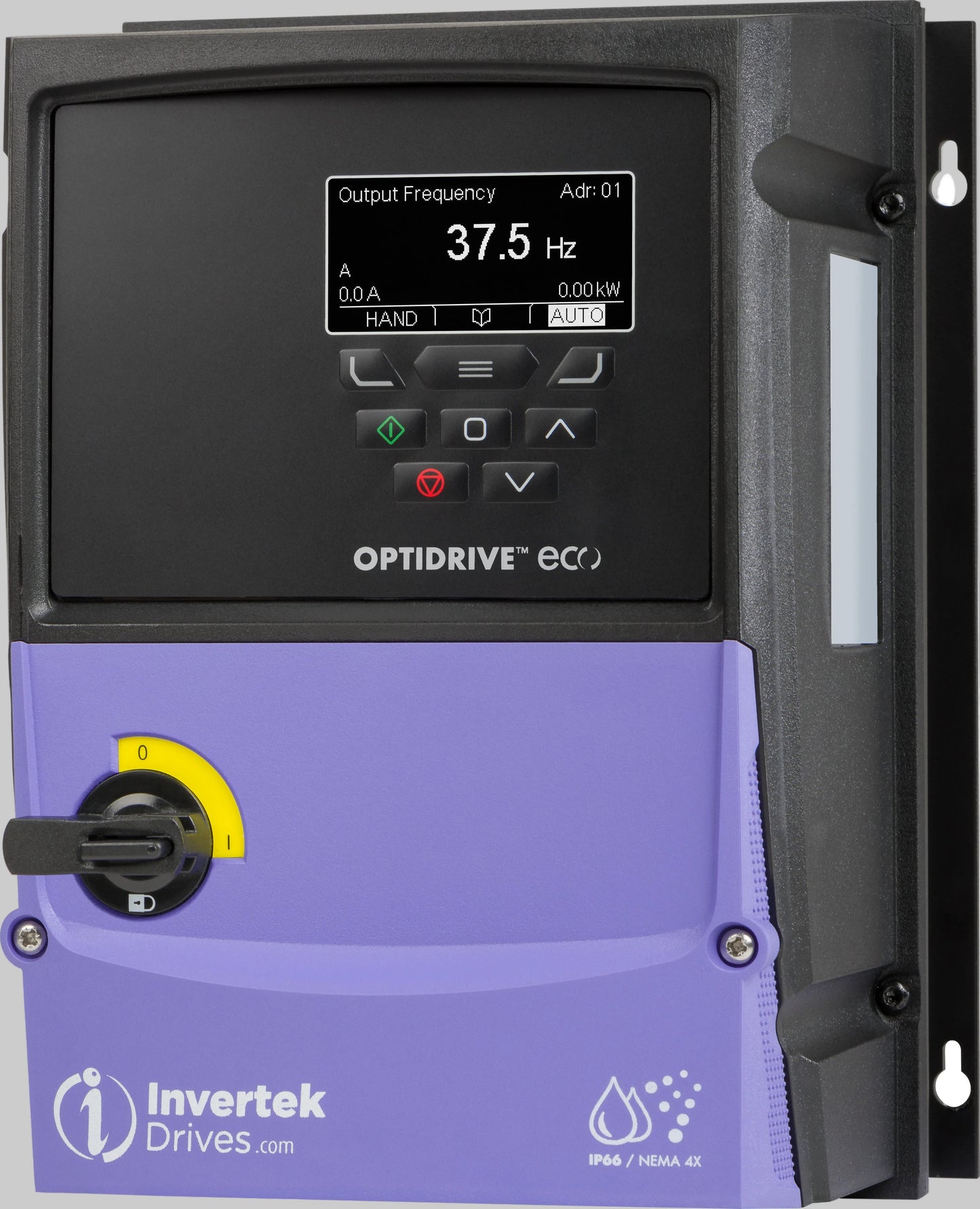

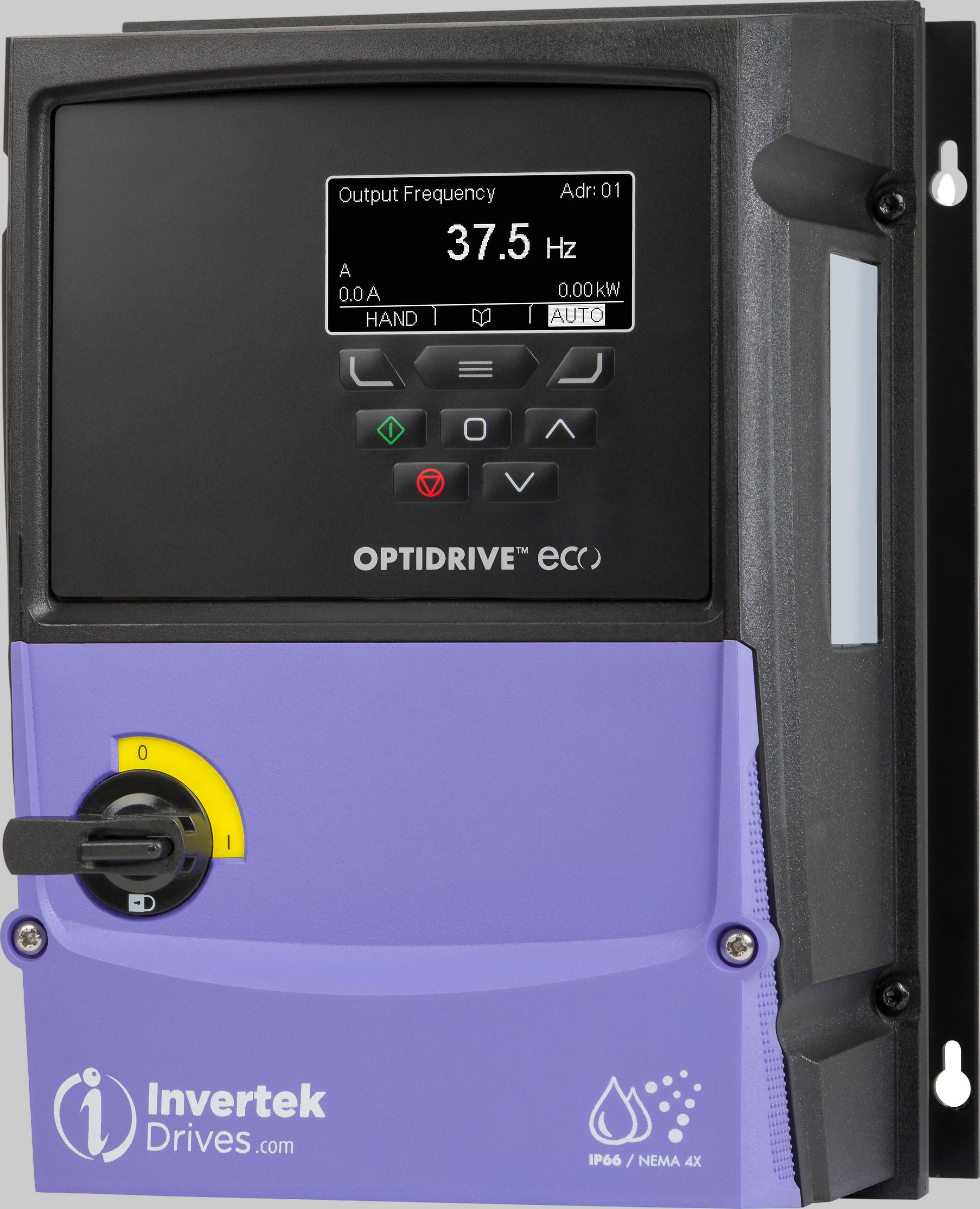

0.75 kW (1 HP), 2.2 A, 380-480 V, 3PH
IP66 With Disconnect Outdoor Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage |
380-480 V |
| Input Phases |
3 |
| Supply Current Continuous |
2 A |
| Supply Fuse or MCB (Type B) |
10 A |
Output Ratings
| Motor Output Rating |
0.75 kW (1 HP) |
| Output Voltage |
0 – Supply Voltage |
| Output Current |
2.2 A |
Cable Information
| Max Supply Cable Size |
8 mm² (0.01 sq in) |
| Max Motor Cable Size |
8 mm² (0.01 sq in) |
| Max Motor Cable Length |
100 m (328 ft) |
Factory Build Options
| EMC Filter |
Internal EMC |
| Brake Transistor |
No Brake Transistor |
| Enclosure |
IP66 With Disconnect Outdoor |
| Display |
TFT Display |
| PCB Coating |
Standard |
Drive Dimensions
| Size |
2 |
| Height |
257 mm (10.12 in) |
| Width |
188 mm (7.4 in) |
| Depth |
182 mm (7.17 in) |
| Weight |
3.5 kg (7.72 lbs) |
| Fixings |
4 x M4 |
Packaged Dimensions
| Height |
215 mm (8.46 in) |
| Width |
235 mm (9.25 in) |
| Depth |
375 mm (14.76 in) |
| Weight |
4.2 kg (9.26 lbs) |
